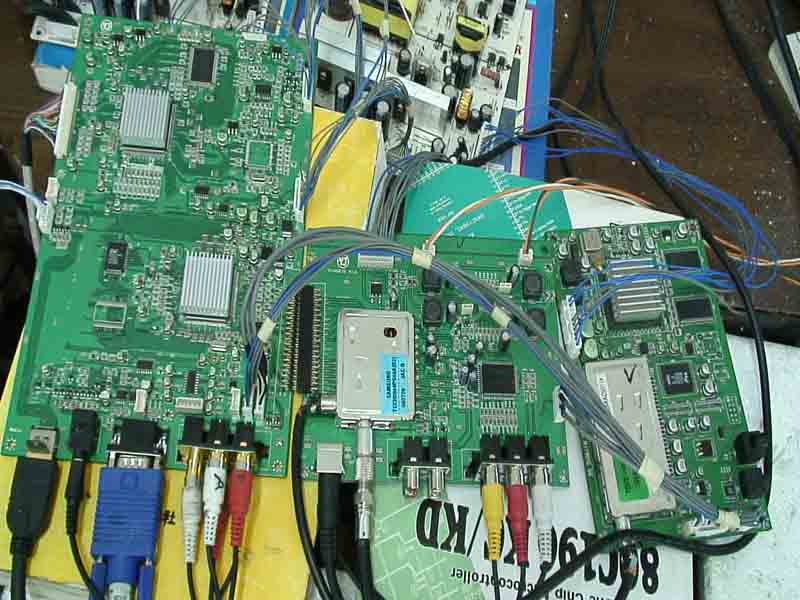

AD BOARD



MODEL

YJ-MA-HD

이미지 SCALER PROCESSOR

MST5151A,MACRONAS

지원판넬

20.1" ~ 55" HD LG/SS/AU/LM 등

해상도지원

1366-768

주요 용도

  • PC 및 HDTV ANALOGTV  멀티미디어 외...

  • XBOX-360  PS3완벽호환



POWER

POWER (100-220V)

OPTION

  • A/D BOARD

  • AUDIO ANALOG TV

  • HDTV

  • POWER



AUDIO L/R

10W AUDIO

INPUT SIGNAL
  • 15PIN D-B    1080P

  • HDMI HDCP   1080P

  • COMPONENT 1080P

  • VIDEO1,2

  • SVIDEO

  •  HDTV        1080i

  •  ANALOG TV



특징

  • PIP

  • POP

  • PBP

  • ZOOM,

  • W-WINDOW

  • 기능 TV VIDEO  HDTV VGA COMPONENT

  •  HDMI HDCP



MAIN ENGINE



Part

Function/Model

NTSC


YJ-MA-HD

General Features

Image Processor(Scaler)

MST5151  MACRONAS

Receiving System

HD , ANALOG  NTSC-M/N

Tunning System

AUTO - SCAN

Screen size

1:1 HD

Power source

AC100~240, 50/60Hz

PC Monitor resolution

Up to WUXGA

PANEL

Aspect Ratio

1-LVDS/20.1"~55" (LG &SAMSUNG AU SS LM) HD

VIDEO

Digital Comb Filter

3D



HD Video

Up to 1080i

3:2/2:2 Pull-Down

Yes

Noise Reduction

Yes

Fuzzy Mode

Picture:USER,NORMAL,MOVIE,VIVID Sound:BASS,TREBLE,BALANCE  AC3 PCM

Picture Tone

Standard,Warm,Cold

Deinterlace

3D

AUDIO

MTS

-

Auto Volume Control

-

Equalizer

-

Tone

-

Power(RMS)

-

Fuzzy Sound

-

Mute

YES

User Friendly Features

PIP(PC on Video)

YES

PIP(Video on Video)

YES

POP

YES

Teletext

-

Closed Caption

-

V-Chip

-

Sleep Timer

YES

Auto Search

YES

Manual Search

-

Add/Erase

YES

Auto/Manual Channel

YES

Quick View

-

Rotate Image option

-

OSD

Multi-Language

ENGLISH, KOREA

Half-Tone

YES

X,Y Position

YES

Duration

YES

OSD Graphic

16COLOR

External Connections

AV(CVBS,AUDIO-R/L)In

YES

S-VIDEO(Y/C)In

YES

DVD(Up to 720p Y,Cb,Cr)In

YES

1080P Y,Pb,Pr

YES

DTV(D4 / Y,Pb,Pr)In

YES

Euro SCART In

-

PC Audio IN

YES

Head Phone Output

-

Hdmi,HDCP

YES

D-Sub

YES

TV System

HDTV

YES

ANALOG TV

YES

PAL

-

SCAM

-
