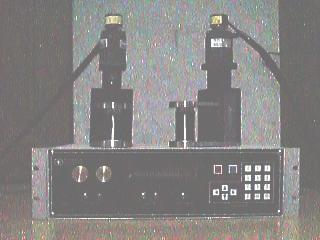

 1 CH STEP CONTROLLER |
 |

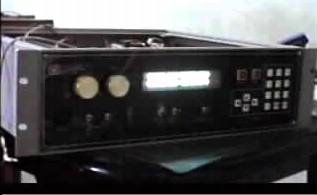

2 CH STEP CONTROLLER |
| Step motor Controller |
|
1 CH STEP CONTROLLER |
|
2 CH STEP CONTROLLER |
| Step motor controller
have 3 methode 2 type. Drive methode : continus rotation, position setting and angle setting methode. All methode need to encoder, Supply to our company. 2 type is normal speed(max 200 rpm, case of continus rotion is 1 to 20 rpm) and high speed type (max 1000rpm). Standard type resolution Position set. : 0.01 mm, angle set 1 degree. Precision type resolution Position 0.005 & 0.001 mm, angle set - 0.01 degree(reduce gear include). |
| Description | Resolution | max. speed | Order code |
| 1 axis controller standard type | 0.01mm | 200mm/min | sme001001 |
| 1 axis controller precision type | 0.005 - 0.001 mm | 200mm/min | sme001002 |
| 2 axis controller standard type | 0.01 mm | 200mm/min | sme001003 |
| 2 axis controller precision type | 0.005 - 0.001 mm | 200mm/min | sme001004 |
| 3 axis controller standard type | 0.01mm | 200mm/min | sme001005 |
| 3 axis controller precision type | 0.005 - 0.001 mm | 200mm/min | sme001006 |
| Description | Resolution | max. speed | Order code |
| 1 axis controller standard type | 0.01mm | 1000mm/min | sme002001 |
| 1 axis controller precision type | 0.005 - 0.001 mm | 1000mm/min | sme002002 |
| 2 axis controller standard type | 0.01 mm | 1000mm/min | sme002003 |
| 2 axis controller precision type | 0.005 - 0.001 mm | 1000mm/min | sme002004 |
| 3 axis controller standard type | 0.01mm | 1000mm/min | sme002005 |
| 3 axis controller precision type | 0.005 - 0.001 mm | 1000mm/min | sme002006 |
| Description | Resolution | max. speed | Order code |
| Angle set. controller | 1 degree | 20 rpm | sme003001 |
| Angle set. precision | 0.01 degree | 20rpm | sme003002 |
| Angle set high speed type | 0.1 degree | 200rpm | sme003003 |
| Rotation controller | 20rpm | sme003004 | |
| Rotation controller | 200rpm | sme003005 | |
| Rotation controller | 1000 rpm | sme003006 |
